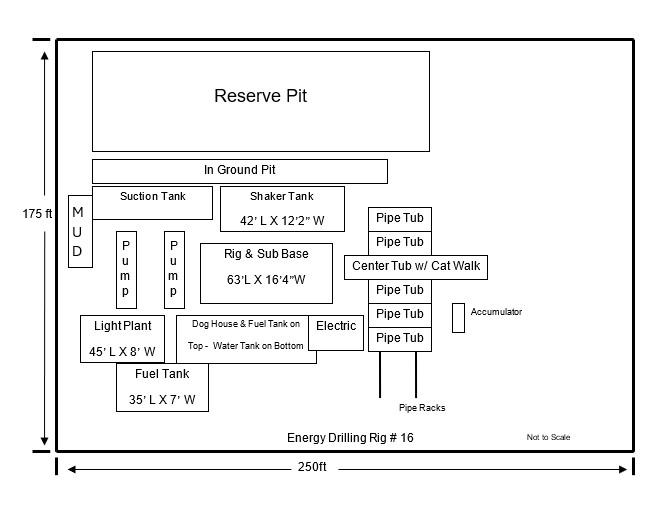

Rig #16

Draw Works

2009 Service King SK-775 Six Axle Carrier, Single Drum powered by 2 each Detroit Diesel Series 60 Engines, 1,000 Total HP, two Avtec Allison transmission, Lebus drum grooved for 1 1/8” line, Hydraulic makeup & breakout catheads, air driller’s controls.

Brake

42” x 12” brake bands with drum water circulating brakes and dual 48” x 10” DISC assist brakes.

Derrick

Service King 112’ x 350,000 lb. hydraulically raised and scoped derrick, Serial Number DK-403, API 4F-4G, S & K crown block with safety platform and climbing ladder. Crown operates on eight lines, 1 1/8” grooved with four each 30” sheaves and one 36” sheave. Crown-o-matic. The Stand pipe is 4” 5000 psi rated. The racking board holds 12,000 feet of 4 ½” drill pipe. It is equipped with a fall restraint device for use while climbing.

Substructure 15 feet

15’ height x 10’2” wide with 350,000 lb stand back capacity. 16 ft KB.

Powered Pumps

• #1 Gardner Denver PZ-9 Triplex, 1000 HP, forged steel fluid end w/ quick-change caps, relief valve, pressure gauge, cooling pump, 5 x 6 charge pump, master skid, powered by 800 HP Detroit Diesel 12V12000 with air clutch. Normally stocked with 6 ½” & 7” liners.
• #2 Gardner Denver MPZ-9 Triplex, 1000 HP, forged steel fluid end w/ quick-change caps, relief valve, pressure gauge, cooling pump, 5 x 6 charge pump, master skid, powered by 1100 HP Caterpillar Diesel 3508 with air clutch. Normally stocked with 5” & 7” liners.

Mud System

• Shaker Tank: 12’ 2” width x 6’ height x 42’ length 440 bbl. 2 each 5 x 6 centrifugal pumps each with 60 HP electric motors, 3 compartments, 3 mud agitators, internal plumbing, slant bottom, top mounted walkways, covered porch and master skid.
• Suction Tank: 8’ 9” width x 6’ height x 39’ length 320 bbl. 2 each 5 x 6 centrifugal mud mixing and transfer pumps each with 60 HP electric motors, 3 compartments – one with 60 bbl. pill capacity, 5 each mud agitators, internal plumbing, slant bottom, top mounted walkways, covered porch and master skid.

Mud Cleaning Equipment

• 2 each Vortex Linear Motion Shale Shakers with oilfield base and loop isolators. 2 explosion proof 1800 RPM vibrator motors rated at 1.5 HP each and explosion proof motor starter.
• Double Life 1310 De-Sander with 3 each 10” urethane cones, vitriolic couplings and header gauge. The unit is rated from 1500 to 1600 GPM at 65 to 75 head feet.
• Double Life V-514 De-Silter with 14 each 5” urethane cones, elbows, vitriolic couplings and header gauge on an oilfield type skid. The unit is rated at 1600 GPM at 70 feet of head

Water Tank & Dog House

• Water Tank 500 bbl.: 8.5’ width x 9’ height x 42’ length water tank with 8’ enclosed pumps/parts room.
• Dog House: 8’ width x 30’ length top mounted insulated doghouse with knowledge box, lockers, Electric Heat and Pason monitoring equipment with touch screen.

Fuel Tanks

Primary Fuel Tank: 8’ width x 6’ height x 10’ length, 3500-gallon diesel fuel tank.

Generator Set

Generator Set: 450 KW 400 DSEC with Series 60 Detroit Diesel, digital panel, skid-mounted. Explosion-proof wiring and lighting.

Primary Light Plant

450 KW Set Model 400 DSEC generator powered by a Series 60 Detroit Diesel, digital control panel with adjustable Hertz control. Electric start and low pressure kill, skid mounted. Storage & parts container mounted on same skid. Set up to handle 110 volt and 220-volt hook ups for directional trailers. All wiring and lighting on rig are explosion proof.

Recording & Monitoring

Rig equipped with PASON Electronic Drilling Recorder (EDR) Includes: Doghouse touch screen computer, Rig Site Server, Rig Management PC workstation, IADC approved Pason electronic work station, contractor morning report, Access to Pason Data Hub with drilling date a minimum twice daily, and commercial grade satellite dish receiver/transmitter. All Pason Services are available upon request. (OPERATOR COSTS)

Handling & Auxiliary Tools

• BJ type C tongs with heads sizes from 3 ½” to 10 3/4”
• 3 ½”- 4”-4 ½” Drill Pipe slip
• Elevators: 3 ½” BN, 4” BN, 4 ½” BN, 5 ½” casing, 7” casing, 8 5/8” casing
• 5 ½” through 7” Drill Collar slips
• Drill Collar Safety Clamp
• 2-Hydraulic pipe handling winches
• Martin Decker Weight Indicator
• Tong torque gauge
• Rotary torque gauge
• 3 ½” ID Rotary Hose
• All rig piping and unions rated to 4000 psi
• 1 Center Tub with foldout 10’ casing extension, 6 Pipe Tubs
• Sure Shot deviation tool with wire line unit
• Rat House & Mouse Hole

Rotating & Traveling Equipment

• Gardner Denver style 17 ½” Rotary Table
• Oil Well PC-200 Swivel
• 5 ¼” Hex Kelly 40 feet overall length, 37 working length
• Foster Kelly Spinner
• Varco Hex Drive Bushings
• YG135 150-ton 8-line traveling blocks with hydra hook
• 1 1/8” Drill Line, 2 3/8” x 96” Elevator Links
• Rauch Pipe Spinner

Drill Pipe & Drill Collars

• 6 ½” 96 #/ft 4 ½” XH Thread, HB, Slip Recessed Drill Collars (6 1/2” OD, 2 ¼” ID)
• 6000 feet of 4 1/2” 16.6 #/ft S135 Drill Pipe with 4 ½” XH HB BN tool joints
