Rig #15

Drawworks

National T-45 Single Drum Drawworks powered by 2 Compounded 425 HP Series 3406 CAT Diesels (850 HP total). Drum grooved for 1 1/8” line. Foster makeup & breakout catheads. Air driller controls.

Base & Brake

PJ-300 Base: 12 ft x 40 ft x 21 in tall, with 3 ft walkways both sides.
WPT W36-OM-201 Water Cooled Brake with Double Clutch rated at 500,000 lbs.

Derrick

2012 PJ 136-350 Jackknife Triple Derrick, 136 ft, 350,000 lbs. Includes Crown-a-matic, 4" 4000 psi standpipe, racking board, ladder, 8-line Crown Sheaves. Designed for top drive.

Substructure

2008 PJ 4-12-670 elevating “Boot Strap” Substructure, 12 ft tall, rated for 670,000 lbs.

Powered Pumps

Two Gardner Denver Replica PZ-9 / QZ-9 Triplex Pumps, 1000 HP each, powered by 800 HP Detroit Diesel 12V12000 with air clutches. Normally stocked with 6 ½” & 7” liners. Includes full monitoring and control skid.

Mud Pit System

Shaker Tank: 440 bbl, 12’2” x 6’ x 42’. 2 x 5x6 centrifugal pumps, 60 HP motors.
Suction Tank: 320 bbl, 8’9” x 6’ x 39’. 2 x 5x6 pumps, pill compartment, 5 agitators.

Mud Cleaning Equipment

2 x National/Varco D235-LI Linear Motion Shale Shakers.
Double Life I-130 De-Sander with 3 x 10" cones.
Double Life V-516 De-Silter with 16 x 5" cones.

Dog House & Fuel Tank

Dog House: 8’ x 47’1”, insulated, includes lockers, Pilot II Automatic Driller, Pason touchscreen.
Fuel Tank: 3,500 gal diesel, skid mounted with dog house.

Water Tank

500 bbl, 8’6” x 47’ x 10’4”, with 9’ electrical room.

Generator Set

Prime 545 eKW CAT C-18 diesel, 681 kVA, explosion proof wiring, digital control panel, supports 110V/220V.

Recording & Monitoring

PASON Electronic Drilling Recorder with full workstation setup. Includes data hub access and satellite uplink. PVT not installed but available.

Handling & Auxiliary Tools

• BJ Style Type C tongs (3 ½”–10 ¾”)
• 4 ½” Drill Pipe & 5 ½”–7” Drill Collar slips
• Drill Collar Safety Clamp
• Elevators: 4 ½” BN, 4 ½” / 5 ½” / 8 5/8” casing
• Cat head & Boom line (1” rope)
• Martin Decker Type “D” Weight Indicator (450,000 lbs)
• 4” Rotary Hose, Center Tub + 10 ft casing extension
• 7 Pipe Tubs, Sure Shot deviation tool with wireline

Rotating & Traveling Equipment

• Gardner Denver 17 ½” Rotary Table
• National Oilwell T-200 Swivel
• 5 ¼” Hex Kelly, 40 ft total, 37.75 ft working
• Varco Hex Bushings, TP Model 77 Kelly Spinner
• 150-ton 8-line blocks with hydra-hook
• 1 1/8” Drill Line, Rat Hole, Mouse Hole
• 2 3/8” x 96” Elevator Links

Drill Pipe & Drill Collars

• 10,000 ft of 4 ½” 16.6 #/ft, Grade G105 Drill Pipe with 4 ½” XH HB BN tool joints
• 12 x 6 ½” 99 #/ft 4 ½” XH Thread Slip Recessed Drill Collars

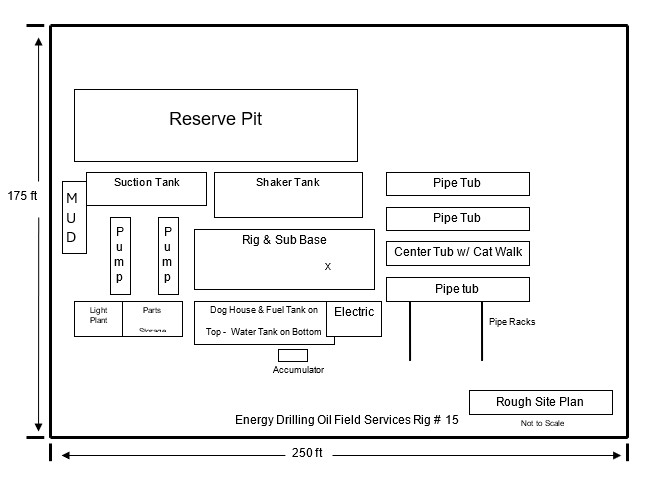

Site Layout

Back of steel pits located 35’ from hole center. 100’ from center back to pumps. 150’ toward tub end.
